A workhorse roller trailer built for landing craft and skiffs from 6.0 to 7.9 metres — with two features most trailers don’t offer. A front extension (rallonge) lets you carry longer hulls or keep your tow vehicle clear of the water at the ramp. A side-folding frame collapses the guide structure flat.
🔹 Front Extension (Rallonge) Slide on the extension to adapt the trailer to a longer hull, or extend the drawbar so your vehicle stays on dry ground at the launch ramp.

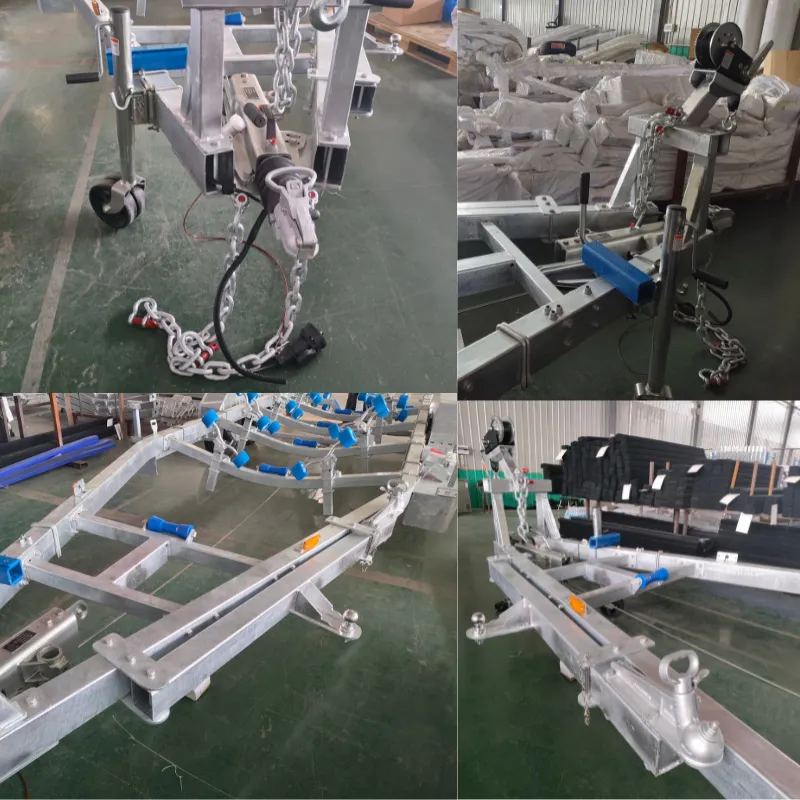

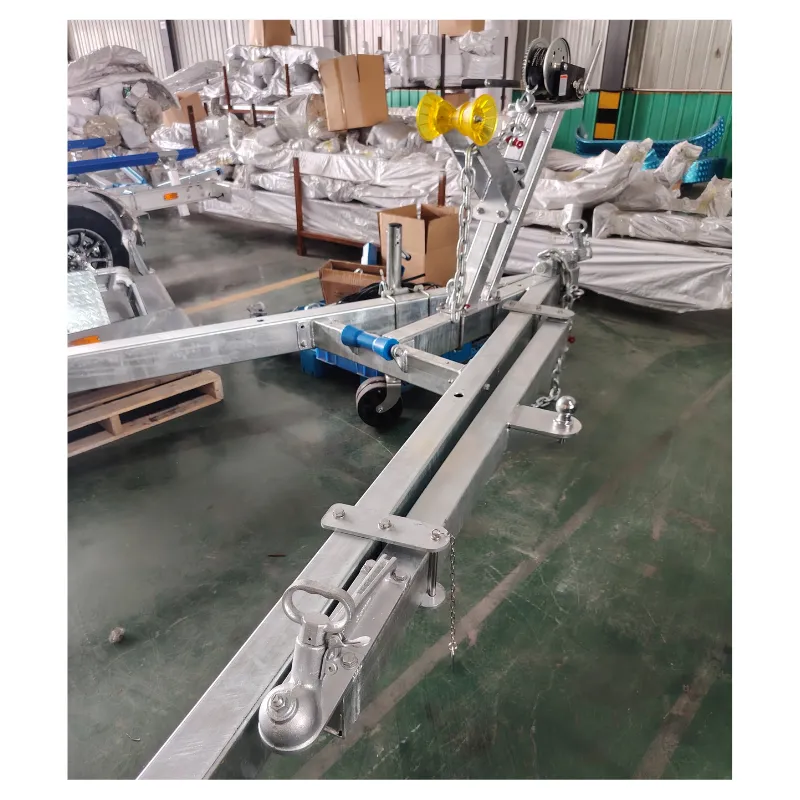

🔹 Side-Folding Frame The extendable, folding tow bar allows the vehicle to be positioned further away when launching into the water, preventing seawater from corroding the tires and the vehicle body. aoes through full hot-dip galvanizing after fabrication — not paint, not pre-gal sheet. Built for repeated saltwater launches.
🔹 Wobble-Roller Bunks Blue wobble rollers on adjustable arms follow the hull’s curve and roll the boat on and off with minimal friction — ideal for shallower ramps and winch-only launches.
🔹 Adjustable Winch Post Heavy-duty hand winch with strap and bow V-roller, adjustable to match different bow heights and overhangs.
🔹 Road-Legal Safety Package Safety chains, certified ball coupler, jockey wheel and lighting kit included as standard.
| Model | Trailer L×W×H (mm) | Fits Boat | Payload | ATM |
| A | 6552 × 2430 × 1185 | 6.0 – 6.3 m | 1,325 kg | 2,000 kg |
| B | 7935 × 2480 × 1362 | 6.3 – 7.3 m | 1,980 kg | 2,500 kg |
| C | 8605 × 2484 × 1517 | 7.3 – 7.9 m | 2,619 kg | 3,500 kg |
Launch day: the drawbar extension keeps your tow vehicle’s exhaust and electrics out of the water — the #1 cause of premature vehicle corrosion for boat owners who use steep or shallow ramps.
Every hull sits differently. Send us your boat’s length, beam and weight — we match the trailer, roller layout and winch spec to it. Dual-axle and triple-axle configurations available for larger builds.
Q: Does the side-fold affect strength when towing? A: No. The folding mechanism locks solid for towing; it only operates when the trailer is parked and unhitched.
Q: Can the extension be removed? A: Yes — the extension section is detachable, so you can run the trailer short for everyday use and fit the rallonge only when needed.
Q: What maintenance does the galvanized frame need? A: Rinse with fresh water after saltwater use. The hot-dip galvanized coating is sacrificial and needs no repainting under normal use.
Q: Do you ship overseas? A: Yes. We export internationally and can quote FOB / CIF. Container-friendly packaging for [ Heck, 待确认是否可拆散装柜 ] — enquire with your destination port.
